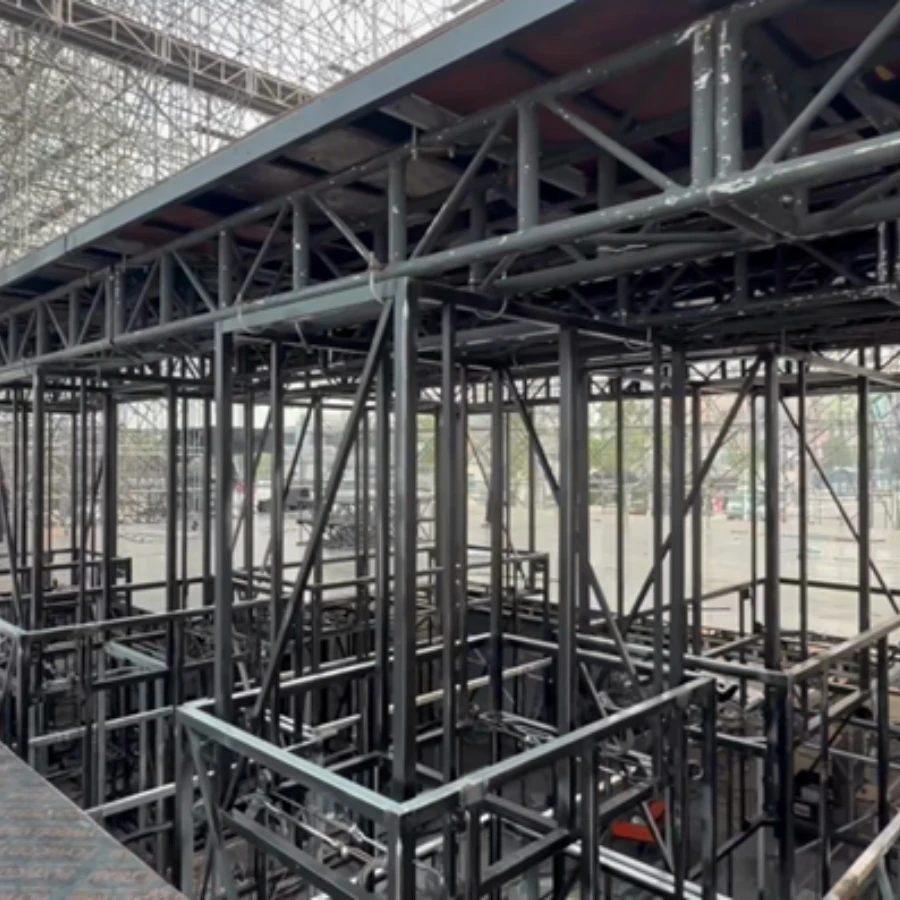

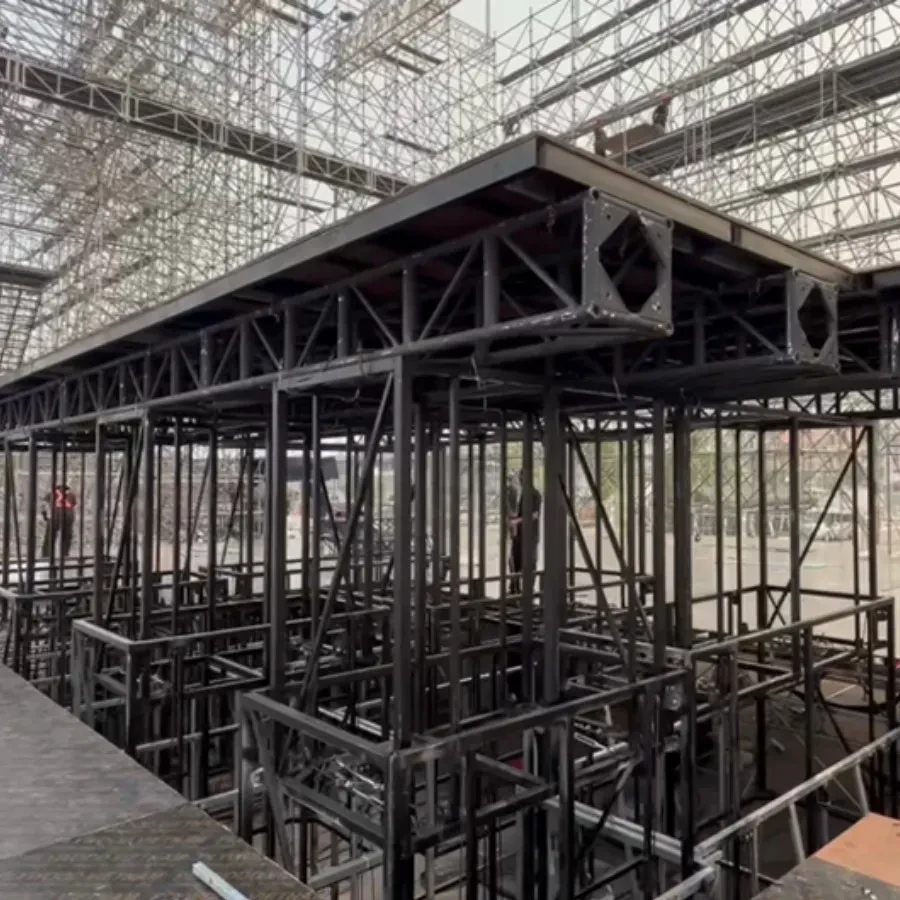

Cable-Driven Stage Lift
A customized stage lift platform is a lifting solution designed and developed to meet the specific requirements of individual stage, event, exhibition, or multipurpose auditorium spaces. The system can be customized in terms of shape, dimensions, load capacity, lifting travel, speed, synchronization level, and control method, ranging from a standalone lifting platform to multiple modules operating in synchronized coordination.
This document is intended to introduce the solution’s capabilities and provide a basis for initial requirement collection. Manufacturing specifications, structural calculations, and safety measures must be determined separately for each project.
SCOPE: This document serves as a preliminary capability and requirement-collection reference. It does not replace project-specific manufacturing drawings, structural calculations, or commissioning and acceptance certificates.
Solution Overview
1. Capabilities
-
Shape: Rectangular, square, circular, curved, polygonal, or other custom profiles based on architectural drawings.
-
Dimensions: Available as a single platform or modular configuration; the structure can be disassembled, transported, and reconfigured as required.
-
Load Capacity: Determined based on WLL, load distribution, point loads, dynamic loads, and actual operating conditions.
-
Movement: Vertical lifting, multiple stopping levels, synchronized operation, or independently controlled zones.
-
Floor Finish: Film-faced plywood, carpet, or other stage flooring finishes as required.
2. Typical Applications
| Application | Operating Objective | Reference Configuration |
|---|---|---|
| Performance Stage | Raise performers or stage props from below the stage floor | Recessed stage lift platform with multiple stopping levels |
| Event Stage | Create different elevations and transform the stage layout | Modular platforms with synchronized control |
| Exhibitions / Vehicle Launches | Elevate products and create dynamic reveal effects | Custom-shaped platform with smooth movement |
| Multipurpose Auditorium | Transform the functionality and layout of the floor area | Multiple independent lift platforms with sensor-based locking |
Proposed System Architecture
HMI / Push-Button Command → Safety PLC Controller → Variable Frequency Drive (VFD) / Motor Starter → Drive Mechanism → Lifting Platform + Guide Rails
Conclusion
A customized stage lift platform provides a high degree of flexibility for creating different elevations, transforming layouts, and delivering reveal effects in stages, events, exhibitions, and multipurpose spaces.
With customizable dimensions, load capacity, lifting travel, speed, modular configuration, and control systems, the solution can be developed to suit the architectural characteristics and operational scenarios of each project.
For actual implementation, the technical requirements, loading conditions, structural design, control system, and safety protection measures must be further defined to develop an appropriate engineering design and manufacturing documentation.
-
